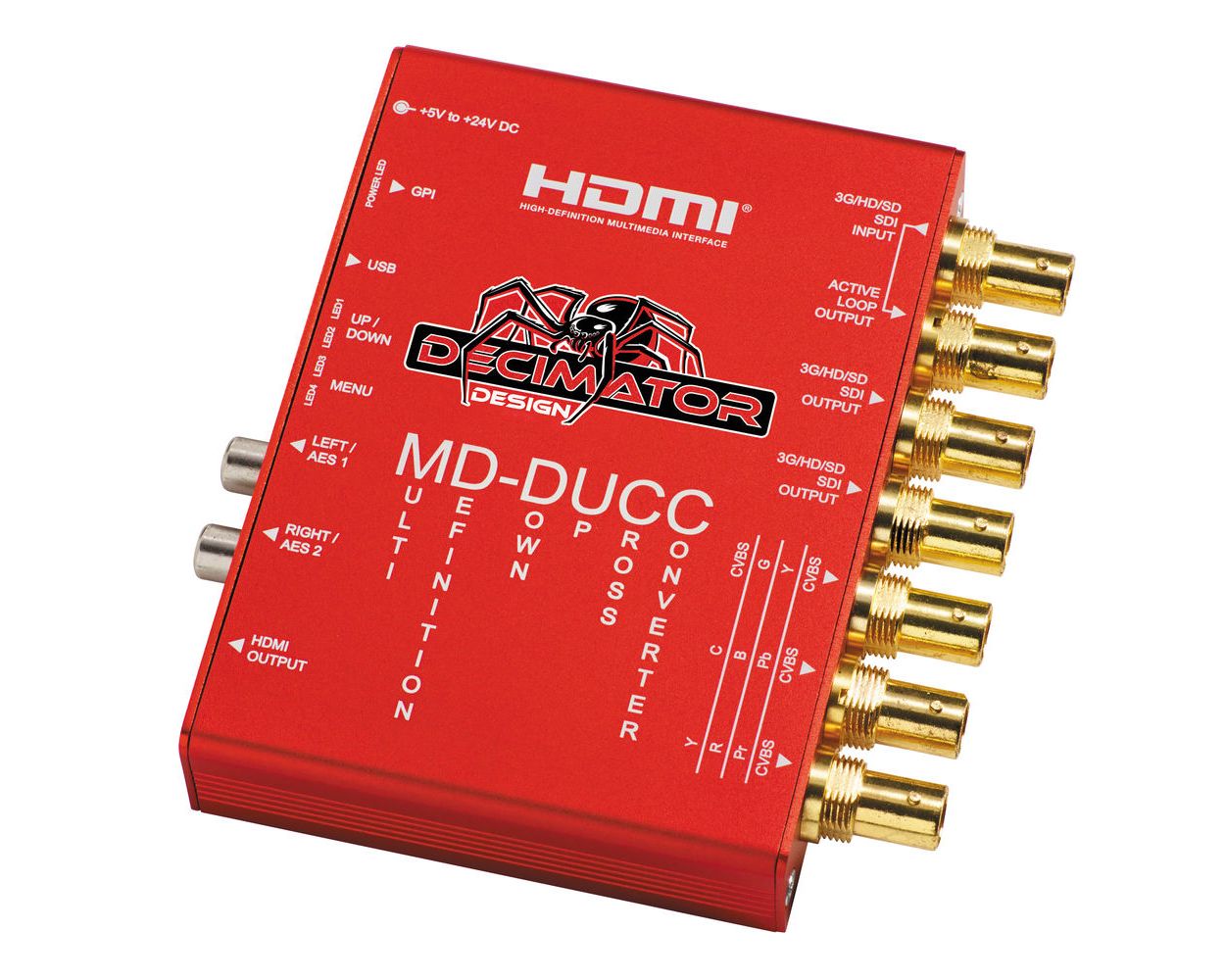

Decimator MD-DUCC Multi-Definition Down Up Cross Converter

BP #: DD-MD-DUCC  |  MFR #: DD-DUCC

Availability: Call for availability

$445.00

Quick Overview

Decimator's MD-DUCC converts any video format or frame rate to another video format or frame rate

Details

NEW FEATURES:
•  The audio source for all 4 stereo pairs in the HDMI output can be
    selected from the 8 stereo pairs available in the SDI input
•  When scaling is enabled, the audio source for all 8 stereo pairs in
    the SDI output can be selected from the 8 stereo pairs available in
    the SDI input

•  Auto detects 3G, HD or SD (26 Formats in total)
•  Full 10-bit data path and multipoint interpolation
•  Professional motion-adaptive de-interlacing
•  True Down Up Cross conversion, allowing the conversion between
    any of the supported formats. Simply select the output format
    you require, no matter what the input format is
•  Complete 16:9, 14:9 and 4:3 Aspect ratio conversion support, with
    individual selection for HD to HD, HD to SD, SD to HD and SD to SD
    conversions
•  Full 16-Channel Audio metering with:
    - Any of the 4 audio groups individually selectable
    - Vertical or Horizontal Bars
    - AES, VU, Extended VU, BBC, EBU, DIN and NORDIC Scales
    - Bar & Float, Bar only or Float only
    - Transparency adjustment
    - Separate Bar and Float Ballistics control
    - Adjustable Reference level
    - Red, Yellow and Green Range adjustment
    - Bar thickness adjustment
    - Margin adjustment
•  Adjustable Graticules Generator with:
    - Separate enables for Safe Action, Safe Title and Centre Cross
    - Adjustable position for either Safe Action or Safe Title
    - Adjustable colours for Safe Action, Safe Title and Centre Cross
•  Text Overlays with:
    - Adjustable Foreground and Background colours
    - Adjustable 16 character text
    - Current input format status
•  HDMI output
•  Selectable analogue video output from:
    - 3 x CVBS out
    - YPbPr out
    - RGB out
    - CVBS & YC out
•  2 x (3G/HD/SD)-SDI 10-bit outputs with audio from input
    automatically delayed and passed
•  GPI on RJ-45 for Tallies
•  3G/HD/SD-SDI Active Loop-Through Output
•  De-Embedded audio can be output on 2 x RCA connectors as either
    AES or Analogue with adjustable analogue audio level
•  LEDs for status and buttons for basic configuration
•  USB port for control and firmware updates
•  Locking DC Power Socket
•  The following is also included with the unit:
    - Power Supply, HDMI Cable, USB Cable and Mounting Bracket
