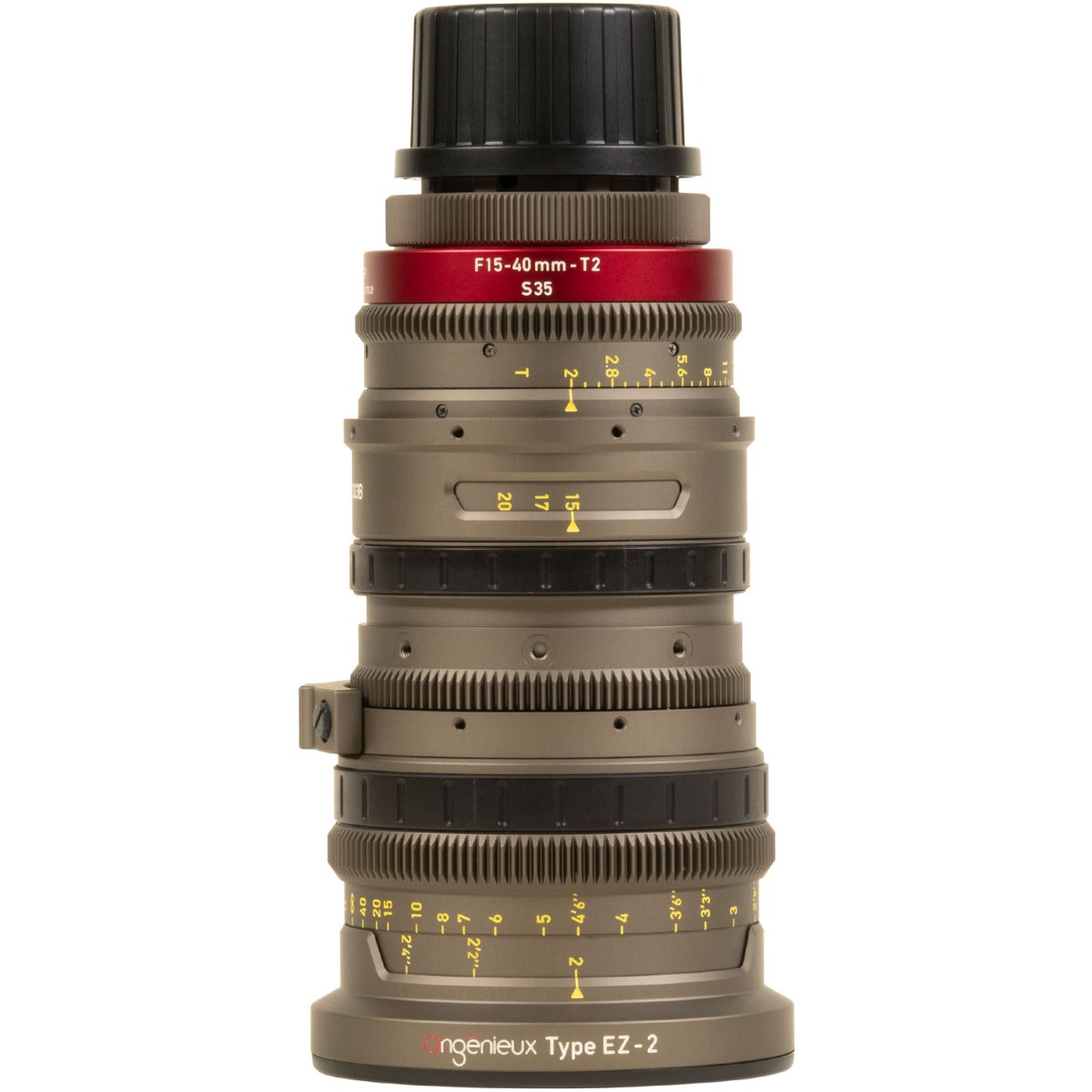

Angenieux EZ-2 (S35 15-40mm T2, FF 22-60mm T3)
Angenieux EZ-2 (S35 15-40mm T2, FF 22-60mm T3)
Angenieux Type EZ Series
OVERVIEW
Created to fill the wide gap between still photography and cinema lenses, the Angeniuex Type EZ Series features three versatile zoom lenses at an affordable price. For the first time, excellent image quality and flexibility is available to cinematographers, ENG shooters, broadcasters, and creators of all backgrounds.
Thanks to Angenieux’s innovative IRO (Interchangeable Rear Optics™) technology, the EZ-2 is compatible with Super 35 and Full Frame/Vista Vision cameras. In its native configuration, the EZ-2 is a Super 35 zoom lens, and features a 15-40mm focal length, and a fast T2 aperture. The EZ-2 is convertible to Full-Frame/Vista Vision by swapping the rear optical block (included). In the Full-Frame/Vista Vision configuration, the EZ-2 features a 22-60mm focal length and a T3 aperture.
The EZ-2 ships with a PL mount, alternative mounts are sold separately. Availeble mounts: Sony E Mount, Canon RF Mount, and Canon EF Mount
SHOT ON TYPE EZ SERIES
FLEXIBLE DESIGN
Multi-Image Format
Super 35, Full-Frame/Vista Vision
Thanks to Angenieux's IRO technology, the EZ-2 is convertible between Super 35 and Full-Frame/Vista Vision. The EZ-2 ships in the S35 configuration. The FF/VV rear optical block is included.
Interchangeable Mount
PL, E, EF, RF Mount
The EZ-2 ships with a cinema standard PL mount. Sony E Mount, Canon EF Mount, and Canon RF Mounts are sold separately. All mounts are easy to install and remove via twist-on/twist-off construction.
Interchangeable Focus Scale
Feet/Meters
The EZ-2 ships with a Feet Focus Scale. A Metric Focus Scale is available separately. Contact our Service Department to purchase and install a metric scale, we're here to help.
TECHNICAL SPECS
| Attribute | Value |
|---|---|
| Sensor Coverage | Super 35, Full-Frame/Vista Vision |
| Image Circle | S35: Up to 30.4mm FF/VV: Up to 46.3mm |
| Lens Mount | PL Mount E, EF, and RF mounts sold separately |
| Focal Length | S35: 15-40mm FF/VV: 22-60mm |
| Maximum Aperture | S35: T2 FF/VV: T3 |
| Zoom Ratio | 2.7x |
| Close Focus | 2' |
| Front Diameter | 114mm |
| Filter Thread | 111mm |
| Metadata | No |
| Focus Scale | Feet Interchangeable to Meters. Scale sold separately. |
| Focus Rotation | 300° |
| Internal Focus | Yes |
| Internal Zoom | Yes |
| Horizontal Field Of View | S35: 77.6° - 33.7° FF/VV : 80.2° - 35° |
| Vertical Field Of View | S35: 44.5° - 19.6° FF/VV : 57.4° - 24° |
| Angenieux Collection | Type EZ Series |
| Weight | 4.7 Pounds |
| Length | 8.27 Inches |
