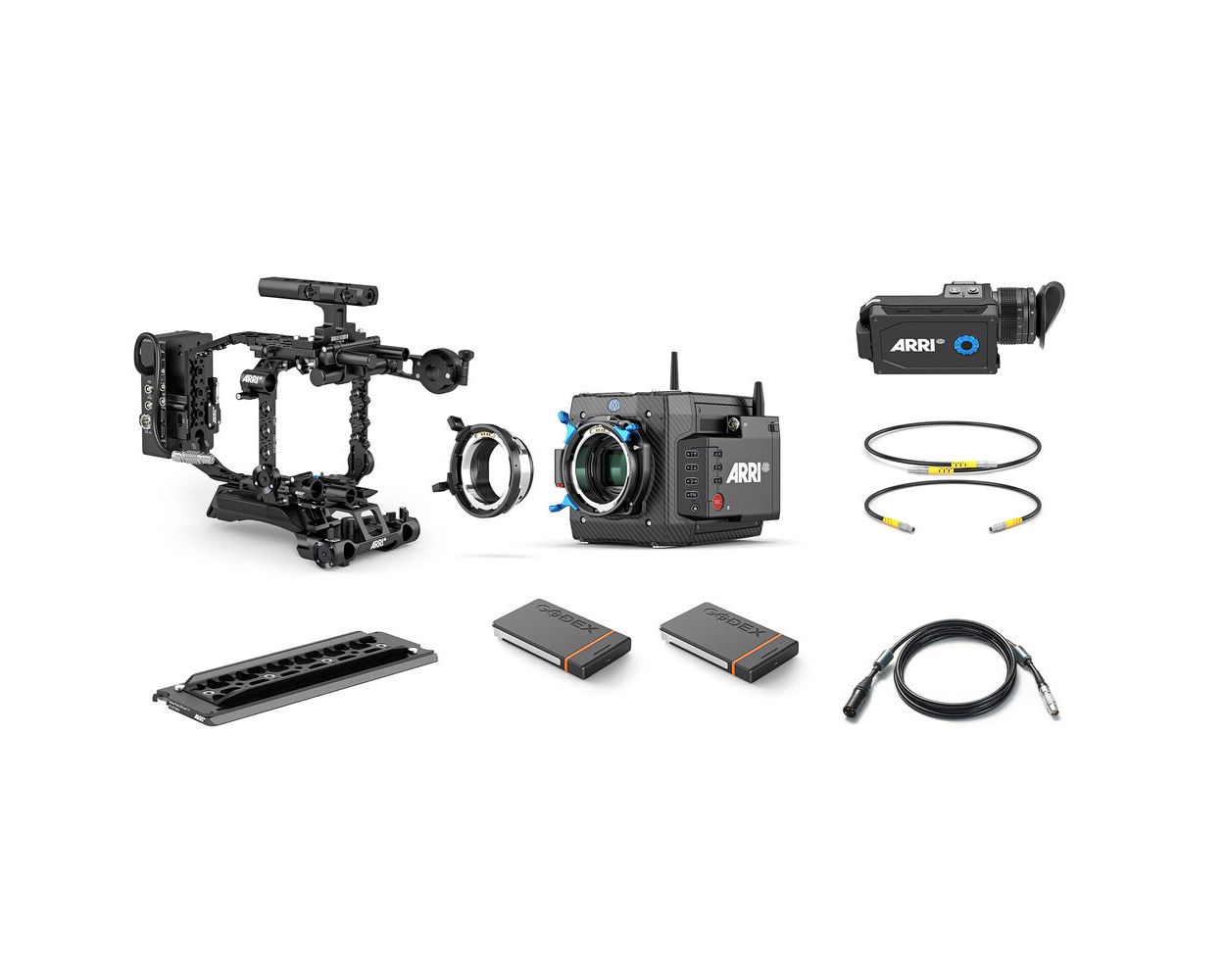

ARRI ALEXA Mini LF Ready to Shoot Set B (4.5K Large Format)
$99,190.00
SKU
AR-K0.0024852
MFR K0.0024852
- Large Format 4.5K ARRI ALEV III (A2X) CMOS Sensor
- LPL Lens Mount. PL to LPL Lens Mount Adapter.
- 14+ Stops of Dynamic Range. Native ISO - 800.
- Internal ND Filters (Clear, 0.6, 1.2, 1.8 | 2, 4, 6 Stops). Fixed Optical Low Pass, UV, IR Filters.
- Internal ARRIRAW and Apple ProRes Recording
- One (1) Codex Compact Drive Slot. Drives available in 1TB and 2TB sizes.
- Two (2) SDI Outputs
- 5.7 Pounds. 5.5 x 5.6 x 7.4 Inches.
Here at Band Pro, we are more than just an online store. While most places sell you a product, here at Band Pro we offer you a lifetime of support. So give us a call now Toll Free at 1-888-BAND-PRO or by email us at sales@bandpro.com so one of our specialist can help you find what you need, better pricing, and stock availability.
ALEXA Mini LF Showreel: Café Mila
PRODUCT OVERVIEW
Embraced by the world’s leading filmmakers as soon as it was announced, the ALEXA Mini LF is ARRI’s flagship large-format camera. Versatile and adaptable due to its compact size, low weight, and multiple recording formats, the Mini LF offers the best overall image quality for large format and an exciting new REVEAL Color Science post workflow.
ARRI Tech Talk
SPECIFICATIONS
| Attribute | Value |
|---|---|
| In The Box | TBD |
| Lens Mount | ARRI LPL |
| Lens Communication | Yes, Cooke /i, ARRI LDS, ARRI LDS-2 |
| Sensor Resolution | Effective: 0 Megapixel (4448 x 3096) |
| Image Sensor | 36.7 x 25.54 mm (ARRI Large Format) CMOS |
| Image Stabilization | No |
| Built-In ND Filter | Mechanical Filter Wheel with 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters |
| Internal Filter Holder | No |
| Capture Type | Video Only |
| Shutter Type | Electronic Rolling Shutter |
| Shutter Speed | 1/8000 to 1 Second |
| ISO/Gain Sensitivity | Native: 160 to 3200 |
| Shutter Angle | 5 to 356° |
| Advertised Dynamic Range | 14 Stops |
| White Balance | Range: 2000 to 11,000K Presets: Auto, Color Temperature, Manual |
| Internal Recording Modes | ARRIRAW/MXF/ARRIRAW 4448 x 3096 up to 40 fps 2880 x 2880 up to 60.00 fps 3424 x 2202 up to 60.00 fps 3840 x 2160 up to 60.00 fps 4448 x 1856 up to 60.00 fps MXF/ProRes/ProRes 422/ProRes 422 HQ/ProRes 4444/ProRes 4444XQ 4448 x 3096 up to 40 fps 2880 x 2880 up to 60.00 fps 3840 x 2160 up to 48.00 fps 2880 x 2160 up to 75 fps 4448 x 1856 up to 60.00 fps 3200 x 1800 up to 75 fps 1920 x 1080p up to 75/100 fps |
| External Recording Modes | No |
| Recording Sensor Crop | Crops to Output Resolution in All Recording Modes |
| Fast-/Slow-Motion Support | Yes |
| Gamma Curve | ARRI Log C, Rec709, Rec2020 |
| Built-In Microphone | Stereo |
| Audio Recording | MXF: 2-Channel 24-Bit 48 kHz LPCM Audio |
| IP Streaming | Yes |
| Media/Memory Card Slot | Slot 1: Codex Compact Drive |
| Video I/O | 2x BNC (6G-SDI) Output |
| Audio I/O | 1x 6-Pin LEMO Input |
| Power I/O | 1x LEMO 8-Pin (10.5 to 34VDC) Input 1x RS 3-Pin (24VDC) Output 1x LEMO 2-Pin (12VDC) Output 1x Proprietary (24VDC) Output |
| Other I/O | 1x LEMO 5-Pin (Timecode) Data Input/Output 1x LEMO 10-Pin (LAN) Control/Data Input/Output 1x BNC (Sync) Control Input 1x LEMO 7-Pin Monitor/Video Input/Output 1x USB-A (USB 2.0) Data 1x Proprietary Viewfinder |
| Wireless | 2.4 GHz Wi-Fi Control |
| Mobile App Compatible | No |
| Global Positioning (GPS, GLONASS, etc.) | No |
| Type | Optional, Not Included |
| Focus Mode | Automatic, Manual Focus |
| Power Consumption | ≥65 W |
| Operating Conditions | 12 to 77°F / -20 to 45°C |
| Storage Conditions | -22 to 158°F / -30 to 70°C |
| Shoe Mount | No |
| Accessory Mounting Thread | No |
| Netflix Approved | Yes |
| Dimensions (W x H x D) | 7.4 x 5.6 x 5.5" / 188 x 143 x 140 mm |
| Dimensions (W x H x D) | 7.4 x 5.6 x 5.5" / 188 x 143 x 140 mm |
| Weight | 5.7 lb / 2.6 kg (With Lens Mount Adapter) |
| Brand | ARRI |
|---|---|
| Manufacturer Part Number | K0.0024852 |
