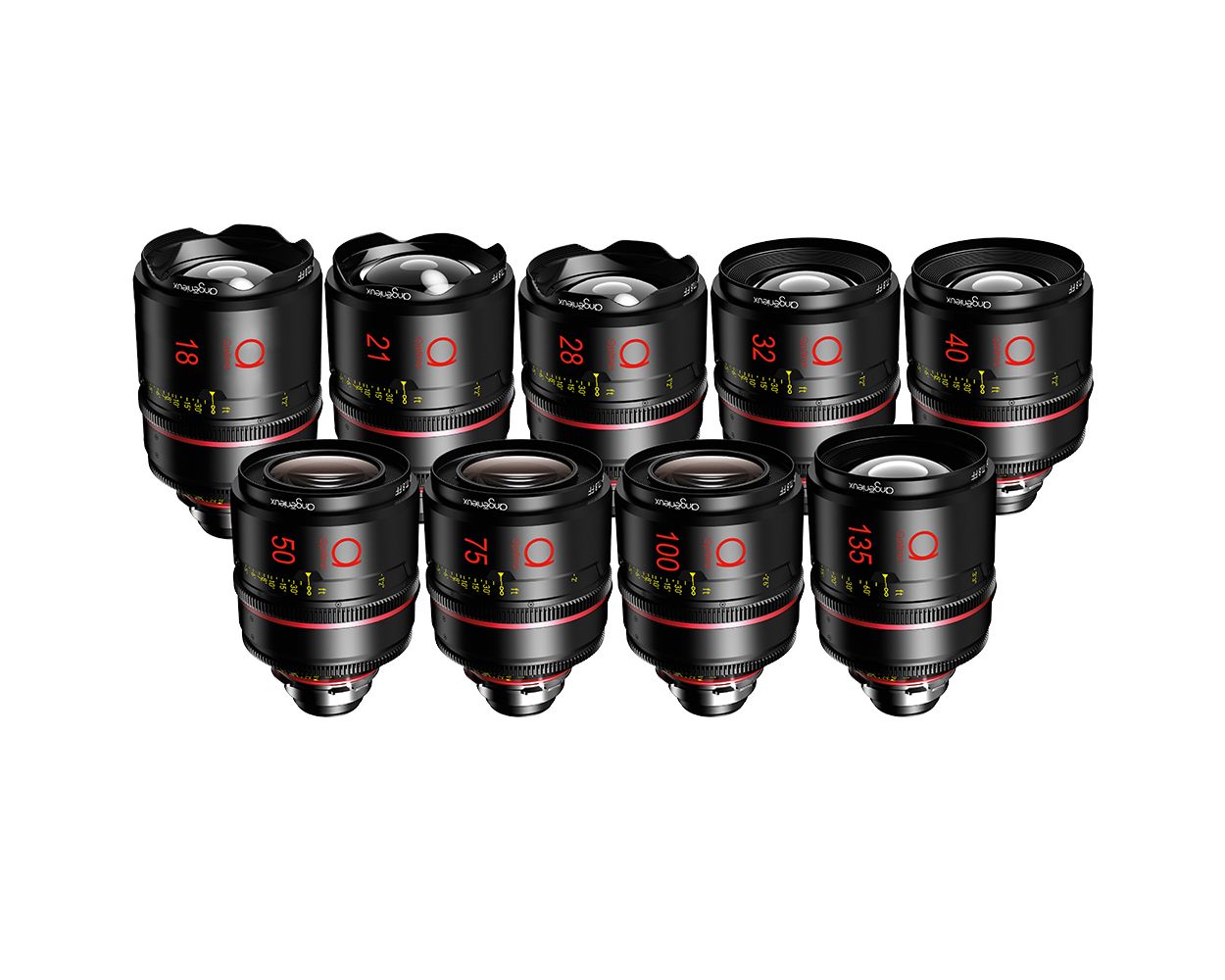

Angenieux Optimo Prime Series Gold Set - 9 Cine Lenses (FF/VV, PL Mount, Feet)
Here at Band Pro, we are more than just an online store. While most places sell you a product, here at Band Pro we offer you a lifetime of support. So give us a call now Toll Free at 1-888-BAND-PRO or by email us at sales@bandpro.com so one of our specialist can help you find what you need, better pricing, and stock availability.
OVERVIEW
Drawing on over 80-years of Angenieux cinematic excellence, Optimo Primes represent a long-awaited step in the evolution of professional optics; finally capturing that signature Angenieux look in a complete prime lens set. Designed to give today’s cinema artists the freedom to work on the largest possible canvas, Optimo Primes provide full frame 46.31mm image circle coverage with a consistent fast aperture. All focal lengths provide maximum flexibility thanks to Angenieux IOP (Integrated Optical Palette) technology, featuring 3 interchangeable optical elements: IOP Filters, Iris Blade Unit, and Rear Filters. Engineered as smart lenses, Optimo Primes support Cooke /i metadata and feature common gear size and position across the entire set.
KEY FEATURES
- Large Format Coverage - Full Frame/Vista Vision, up to 46.31mm
- PL Mount
- Fast Aperture - T1.8 accross the entire set (T2 18mm)
- Metadata - Lens contacts, LEMO cable
- Standard Drive Gears - 0.8 metric module
- Focus Rotation - 300 degrees
- Standard Front Diameter - 95mm
- 3 Interchangeable Optical Elements
- Interchangeable IOP Filters
- Interchangeable Iris Blade Unit
- Interchangeable Rear Filters
- NAB Product Of The Year 2023
- Cine Gear Expo 2022 Optics Technical Award Winner
TECHNICAL SPECS
| FOCAL LENGTH (MM) | 18 | 21 | 28 | 32 | 40 | 50 | 75 | 135 |
|---|---|---|---|---|---|---|---|---|
| MAX T-STOP | 2 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 |
| MOD | 1'2" | 1'2" | 1'2" | 1'2" | 1'2" | 1'4" | 2' | 3'3" |
| Front Diameter | 95mm | 95mm | 95mm | 95mm | 95mm | 95mm | 95mm | 95mm |
| Image Circle | 1.8/46.31 | 1.8/46.31 | 1.8/46.31 | 1.8/46.31 | 1.8/46.31 | 1.8/46.31 | 1.8/46.31 | 1.8/46.31 |
| Reference Feet / Meters |
324783 / 324887 | 324778 / 324882 | 324776 / 324880 | 324781 / 324885 | 324775 / 324879 | 324780 / 324884 | 324779 / 324883 | 324777 / 324881 |
| LENGTH (MM) FROM PL MOUNT |
160 | 140 | 128 | 128 | 128 | 128 | 128 | 140 |
| Horizontal FOV | 97.0° | 87.8° | 81.3° | 65.3° | 54.3° | 44.3° | 30.1° | 17.0° |
| Vertical FOV | 65.0° | 57.0° | 44.7° | 39.5° | 32.0° | 25.7° | 17.3° | 9.6° |
| Approx. Weight (kg / lbs) | 1.9 / 4.18 | 1.8 / 3.96 | 1.7 / 3.75 | 1.7 / 3.75 | 1.7 / 3.75 | 1.7 / 3.75 | 1.7 / 3.75 | 2.0 / 4.4 |
| Focus Barrel Rotation MOD to Infinity |
320° | 320° | 320° | 320° | 320° | 320° | 320° | 320° |
| Focus Barrel Rotation End Stop to End Stop |
300° | 300° | 300° | 300° | 300° | 300° | 300° | 300° |
| Iris Barrel Rotation | 75° | 75° | 75° | 75° | 75° | 75° | 75° | 75° |
| Manufacturer Part Number | ANG-OPR-GOSET |
|---|---|
| Brand | Angenieux |
| Estimate Time | Financing Available - $0 Down, 0% Interest for 24 Months |
