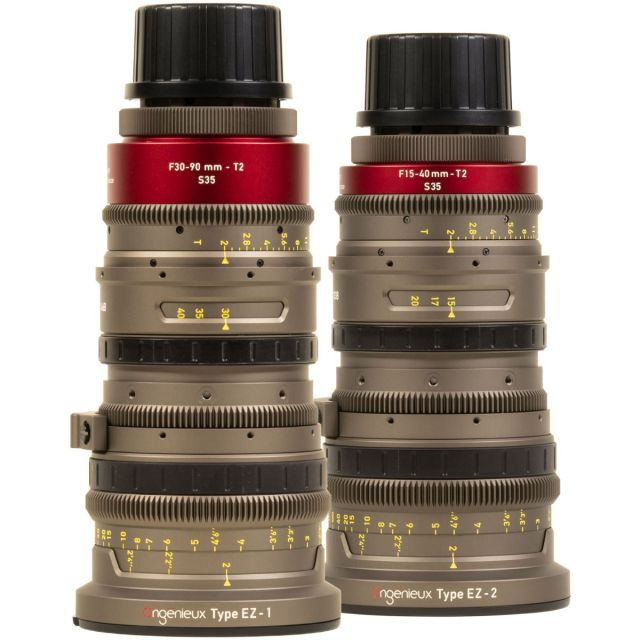

Angénieux EZ-2 Super 35/Full Frame Lens Pack

BP #: ANG-EZ-2-PACK

Call for Price/Availability

Quick Overview

The Angénieux Type EZ-2 for S35mm/FF/VistaVision camera is a wide zoom lens with a zoom factor of 2.7x. Its focal range and aperture are set to 15-40mm F1.9/T2. By exchanging the rear lens group, the lens becomes a 22-60mm F2.8/T3 covering an image circle up to 46mm diagonal.

Details

Created to fill the wide gap between basic still photography zooms, and the highly acclaimed Optimo, Optimo Style family of lenses used in the motion pictures industry, the Angénieux Type EZ series features two new light weight zooms. Thanks to an innovative lens modular design (Interchangeable Rear Optics IRO technology™), both lenses allow the rear lens group to be exchanged between S35mm (up to 30mm image diagonal), and FF/VistaVision format (up to 46mm image diagonal).

For the first time, ENG-style productions will get the flexibility necessary for run-and-gun shooting, combined with an excellence of image quality at an affordable price. Users can also easily change between PL, Canon EF and Sony E mounts.

Includes rear lens groups for both super 35mm and Full Frame/Vista Vision cameras.


S35:    15-40mm T2 / f1.9, image coverage up to 30mm diagonal

FF/VistaVision:  22-60mm T3 / f2.8, image coverage up to 46mm diagonal

Extremely fast T2 across zoom range with no ramping

Lightweight (2,120g / 4.6 pounds)

Extremely wide coverage with minimal distortion

Internal focusing & zooming, lens size remains constant throughout zooming & focusing range.

Traditional angenieux look, colorimetry matches those of Optimo & OPTIMO STYLE series.

Short MOD 0.6m / 2 feet

In-lens thermal compensation, significantly reduces temperature drift.

Precise and ergonomic focus ring with scale rotation of 300 degrees

Luminescent FTZ markings, easy reading in dark

Available with PL lens mount, easy conversion to EF or E mount by users

Front diameter 114mm, matte boxes compatible with those used on OPTIMO & OPTIMO STYLE compact zooms

Detachable ENG style zoom grip available from MOVCAM

Zoom Ratio  2.7x

S35:   Focal Length  15 – 40 mm, Aperture  f/1.9 – T2

FF/VistaVision:   Focal Length  22-60 mm, Aperture  f/2.8-T3

Close Focus  2ft – 0.6 m

Internal Focus  Yes

Image Coverage  Up to 30 mm

Weight (approx.)  4.7lb – 2.12kg

Length  210 mm

Front diameter  114 mm



Field Of View for 24×13.5 mm

Focal Length 15mm 40mm
Horizontal angular field of view 77.6° 33.7°
Vertical angular field of view 44.5° 19.6°



Field Of View for 37.7×24.9mm

Focal Length 22mm  60mm
Horizontal angular field of view 80.2°  35°
Vertical angular field of view 57.4° 24°
