Fast T1.8 Aperture (18mm T2, 200mm T2.2)
18mm, 21mm, 24mm, 28mm, 32mm, 40mm, 50mm, 60mm, 75mm, 100mm, 135mm, 200mm

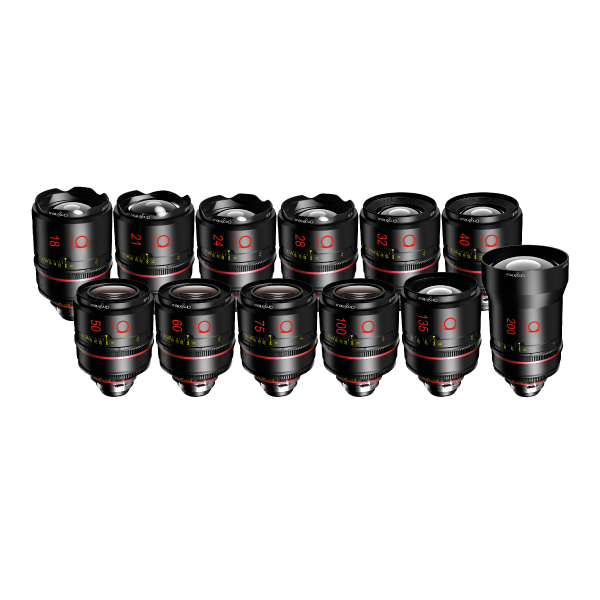

Platinum Set
12 Prime Lenses
18, 21, 24, 28, 32, 40, 50, 60, 75, 100, 135, 200
Gold Set
9 Prime Lenses
18, 21, 28, 32, 40, 50, 75, 100, 135
Silver Set
6 Prime Lenses
21, 28, 40, 50 75, 135
A La Carte
Choose Your Lenses
Create the set that is right for you.
Have questions?
Band Pro is the exclusive distributor and service center in the US, Canada, and Latin America.
For sales, service, demos, and all other inquiries, please give us a call.
3 INTERCHANGEABLE OPTICAL ELEMENTS
Thanks to Angenieux's IOP (Integrated Optical Palette) technology, Optimo Primes feature 3 interchangeable optical elements:
IOP Filters, Iris Blade Unit, Rear Filters
IOP Filters
Over 10 Options Available
Iris Blade Unit
9 Blade, 3 Blade, Oval
Rear Filters
Options Coming Soon
Optimo Prime IOP Tool Kit
Required to change IOP Filters and the Iris Blade Unit
CINE GEAR EXPO 2022
TECHNICAL AWARD WINNER
Camera Technology: Optics
Angenieux Optimo Primes – Integrated Optical Palette (IOP)
IOP (INTEGRATED OPTICAL PALETTE)
By positioning an IOP Filter inside of Optimo Primes, light makes contact with internal optical elements, creating images and effects that are not possible with front or rear filters. This flexibility allows Cinematographers to create a custom look that is unique to them.
Featured IOP Filters
Black Pro-Mist
1/4, 1/8 Strength
Black Satin
1/4, 1/8 Strength
Low Con
1/4, 1/8 Strength
Glimmerglass
1/4, 1/8 Strength
Clear
Uncoated
Pearlescent
1/4, 1/8 Strength
SHOT WITH OPTIMO PRIMES
INTERCHANGEABLE IRIS
9 Blade (Default), 3 Blade, Oval
Optimo Primes feature an interchangeable Iris Blade Unit,
giving cinematographers the option to choose the shape of their bokeh.
REAR FILTERS
More Creative Flexibility
In addition to IOP Filters, Optimo Primes feature screw-on Rear Filters.
Options are coming soon.
6 Hole ATA Case
Does not fit 200mm
6 Hole ATA Case (200mm)
Fits 200mm
Pro Cap (95mm)
Does not fit 200mm
Pro Cap (114mm)
Only fits 200mm
Daisy Jones & The Six
Now playing on Amazon Prime Video
Shot by Checco Varese, ASC and Jeff Cutter
LEARN WHY CHECCO VARESE, ASC
CHOSE OPTIMO PRIMES FOR DAISY JONES & THE SIX
UNIT STILLS BY LACEY TERRELL, SMPSP
"I Tested Full Frame Lenses From 7 Manufacturers"
"I recently shot Angenieux Optimo Primes with IOP on Daisy Jones and the Six for Amazon. For this particular job I tested full frame lenses from 7 different manufacturers. We were trying to achieve a specific look that was pristine, beautiful, and that would envelope the characters. From these tests we fell in love with Optimo Primes. They are beautifully crafted like all Angenieux lenses. The focus fall off and bokeh are unique."
"It Was Like Seeing Light Through A Glass Of Champagne"
"We decided to use a Glimmerglass 1/8 IOP Filter. With this, it was like seeing the light through a glass
of champagne. For some scenes we added netting in the back of the lens in lieu of rear filtration. This created a
timeless glow in the highlights.
I will be using these lenses again on an upcoming NBC pilot shooting later this month."
OPTIMO PRIMES WITH IOP
NAB Product Of The Year 2023
- Large Format Coverage - Full Frame/Vista Vision, up to 46.31mm
- PL Mount
- Short MOD - 1'2" - 4"
- Fast Aperture - T1.8 (18mm T2, 200mm T2.2)
- Metadata - Lens contacts, LEMO cable
- Standard Drive Gears - 0.8 metric module
- Focus Rotation - 300 degrees
- Standard Front Diameter - 95mm (200mm at 114mm)
- Interchangeable IOP Filters
- Interchangeable Iris Blade Unit
- Interchangeable Rear Filters
Technical Specifications
| Focal Length | 18mm | 21mm | 24mm | 28mm | 32mm | 40mm | 50mm | 60mm | 75mm | 100mm | 135mm | 200mm |
| Lens Mount | PL Mount | PL Mount | PL Mount | PL Mount | PL Mount | PL Mount | PL Mount | PL Mount | PL Mount | PL Mount | PL Mount | PL Mount |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max T-Stop | T2 | T1.8 | T1.8 | T1.8 | T1.8 | T1.8 | T1.8 | T1.8 | T1.8 | T1.8 | T1.8 | T2.2 |
| Minimum Object Distance | 1'2" | 1'2" | 1'2" | 1'2" | 1'2" | 1'2" | 1'4" | 1'8" | 2' | 2'4" | 3'3" | 4' |
| Front Diameter | 95mm | 95mm | 95mm | 95mm | 95mm | 95mm | 95mm | 95mm | 95mm | 95mm | 95mm | 114mm |
| Image Circle | 46.31mm | 46.31mm | 46.31mm | 46.31mm | 46.31mm | 46.31mm | 46.31mm | 46.31mm | 46.31mm | 46.31mm | 46.31mm | 46.31mm |
| Length | 6.30 in. | 5.51 in. | 5.04 in. | 5.04 in. | 5.04 in. | 5.04 in. | 5.04 in. | 5.04 in. | 5.04 in. | 5.04 in. | 5.51 in. | 7.48 in. |
| Horizontal FOV (*) | 97.0° | 87.8° | 81.3° | 72.5° | 65.3° | 54.3° | 44.3° | 37.3° | 30.1° | 22.9° | 17° | 11.5° |
| Vertical FOV (*) | 65.0° | 57.0° | 51.4° | 44.7° | 39.5° | 32.0° | 25.7° | 21.5° | 17.3° | 13.0° | 9.6° | 6.5° |
| Focus Barrel Rotation MOD to Infinity | 320° | 320° | 320° | 320° | 320° | 320° | 320° | 320° | 320° | 320° | 320° | 320° |
| Focus Barrel Rotation End Stop To End Stop | 300° | 300° | 300° | 300° | 300° | 300° | 300° | 300° | 300° | 300° | 300° | 300° |
| Iris Barrel Rotation | 75° | 75° | 75° | 75° | 75° | 75° | 75° | 75° | 75° | 75° | 75° | 75° |
| Default Rear Filter Size | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD |
| Compatible Rear Filter Size | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD |
