OPTIMO
PRIME
LENS
Main features
Drawing on over 80-years of Angenieux cinematic excellence, Optimo Primes represent a long-awaited step in the evolution of professional optics; finally capturing that signature Angenieux look in a complete prime lens set.
Designed to give today’s cinematic artists the freedom to work on the largest possible canvas, Optimo Primes provide full frame 46.5mm image circle coverage. All focal lengths are PL mount. Engineered as smart lenses, Optimo Primes will support both Cooke/I and Arri LDS; and feature common gear size and position across the entire 12-lens set.
Providing cinematographers with the freedom to create unique custom looks, each lens in the Optimo Prime series features Angenieux’s new Integrated Optical Palette (IOP) technology. The IOP lens customization system includes interchangeable internal glass optical elements, variable blade iris cartridges, and rear filter design.
The new full frame Angenieux Optimo Primes are now available to rent worldwide, with more sets delivering weekly, and available now in the Americas at:
 Los Angeles |
 North America |
 |
 Mexico City |
 Portland / Seattle |
 New York |
|
|
 Chicago |
 New York |
Optimo Primes in Action

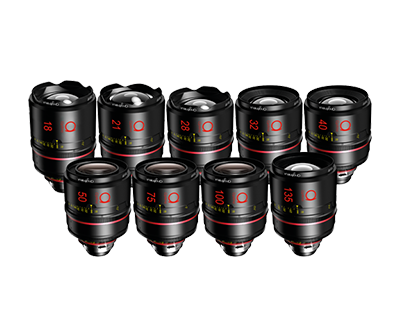

ARRIVING IN 3 SETS
Optimo Prime
Platinum Set
12 Full Frame Lens Set
18, 21, 24, 28, 32, 40, 50, 60, 75, 100, 135 and 200 mm
Learn More
SPECIFICATIONS
| FOCAL LENGTH (MM) | 18 | 21 | 24 | 28 | 32 | 40 | 50 | 75 | 100 | 135 | 200 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| T-NB | 2 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 2.2 |
| MOD | 1’2” | 1’2” | 1’2” | 1’2” | 1’2” | 1’2” | 1’4” | 2” | 2’4” | 3’3′ | 4” |
| HORIZONTAL FOV (*) | 97.0° | 87.8° | 72.5° | 81.3° | 65.3° | 54.3° | 44.3° | 30.1° | 22.9° | 17° | 11.5° |
| VERTICAL FOV (*) | 65.0° | 57.0° | 44.7° | 44.7° | 39.5° | 32.0° | 25.7° | 17.3° | 13.0° | 9.6° | 6.5° |
| Aprox WEIGHT KG/LBS (**) | 1.9/4.18 | 1.8/3.96 | 1.7/3.75 | 1.7/3.75 | 1.7/3.75 | 1.7/3.75 | 1.7/3.75 | 1.7/3.75 | 1.8/3.96 | 2.0/4.4 | 2.3/5.07 |
| LENGTH (MM) FROM PL MOUNT | 160 | 140 | 128 | 128 | 128 | 128 | 128 | 128 | 128 | 140 | 190 |
| FRONT DIAMETER | 95mm | 95mm | 95mm | 95mm | 95mm | 95mm | 95mm | 95mm | 95mm | 95mm | 114mm |
*40.5mmx22.4mm sensor size
**Weight in Approximation
