OPTIMO
ULTRA COMPACT
High-End Lightweight Cine Zooms
Optimo Ultra Compact lenses are a clear upgrade from the academy awarded Optimo 15-40 and 28-76 lenses which have been the faithful companions for Cinematographers for more than 15 years. Thanks to Angenieux IRO (Interchangeable Rear Optics Technology™), an innovative modular lens design, both lenses are interchangeable between Full Frame/Vista Vision and Ultra 35.
Have questions?
Band Pro is the exclusive distributor and service center in the US, Canada, and Latin America.
Get in touch, our team is here to help you.
Consistent Image Quality
Optimo Ultra Compacts maintain superb image quality across the entire aperture and zoom range.
Metadata Support
Ultra Compacts feature /i metadata via PL mount pins and also on an external Lemo connector.
Compact And Lightweight
No compromise was taken to achieve optical quality in a compact and lightweight design.

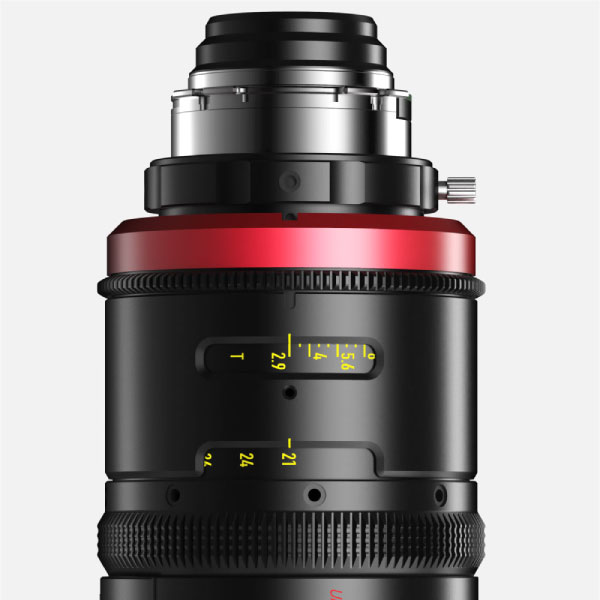

IRO (Interchangeable Rear Optics) Technology
Full Frame/Vista Vision | Ultra 35
Angenieux Ultra Compact Full Packs give you the flexibility to use Ultra Compacts with Full Frame or Super 35 cameras. Full Packs include One (1) FF/VV IRO block and One (1) U35 IRO block. Each IRO block is optimized for its respective image format.
Note: Angenieux IRO is a dedicated rear optical lens group, it is not a speed booster or reducer.
"Ultra Compact Zooms match the color, contrast, and look of the Optimo Line: Optimo Primes and Optimo Ultra 12x."
- Clement Mondesert (Project Manager for Angenieux Optimo Ultra Compact Zooms)
New Optical Design
- Designed to support FF/VV or U35 coverage
- Superb image quality from T2.9 in FF/VV open aperture, T2.2 in Ultra 35
- Well controlled optical performance at each focal length and focus distance by having a good balance between contrast and resolution
- Perfect homogeneity of color, contrast and resolution
- No ramping, minimal breathing
- Close focus of 2ft / 0.6m enables extreme close-up shots
- Internal focus and zoom for a constant lens volume
New Mechanical Design
- Completely newly designed mechanics vs Optimo 15-40 & 28-76
- Compact and lightweight construction
- Precise and rugged traveling of the zoom and focus groups using Angenieux classic rod mechanical guiding system
- Precise and ergonomic focus ring with scale rotation of 310°, with user-optimized markings
- User changeable focus marking rings (focusing scales available in feet or metric)
- Adapted to extreme shooting environments (passive athermalization from -20°C to +45°C)
- Available in PL mount
Technical Specifications
| Specification | Ultra Compact Wide Angle 21-56mm | Ultra Compact Standard 37-102mm |
| Image Circle Coverage | FF/VV: Up to 46.3mm U35: Up to 34.6mm |
FF/VV: Up to 46.3mm U35: Up to 34.6mm |
|---|---|---|
| Lens Mount | PL Mount | PL Mount |
| Zoom Ratio | 2.7x | 2.7x |
| Focal Length | FF/VV: 21-56mm U35: 16-42mm |
FF/VV: 37-102mm U35: 28-76mm |
| Aperture | FF/VV: T2.9 U35: T2.2 |
FF/VV: T2.9 U35: T2.2 |
| MOD | 24 in / 0.6 m | 24 in / 0.6 m |
| Front Diameter | 114 mm / 4.5 in | 114 mm / 4.5 in |
| Metadata | Cooke Metadata | Cooke Metadata |
| Horizontal FOV | FF/VV: 87.5 - 40.2 degrees U35: 87.5 - 40.2 degrees |
FF/VV: 57.3 - 22.7 degrees U35: 57.3 - 22.7 degrees |
| Internal Focus | Yes | Yes |
| Internal Zoom | Yes | Yes |
| Weight | 6.17 lbs / 2.8 kg | 6.17 lbs / 2.8 kg |
| MPN | FF/VV: ANG-OUC-2156MM-FT U35: ANG-OUC-21-56-FF-VV-U35 |
FF/VV: ANG-OUC-37102MM-FT U35: ANG-OUC-37-102-FF-VV-U35 |
