Main features
Drawing on over 80-years of Angenieux cinematic excellence, Optimo Primes represent a long-awaited step in the evolution of professional optics; finally capturing that signature Angenieux look in a complete prime lens set.
Designed to give today’s cinematic artists the freedom to work on the largest possible canvas, Optimo Primes provide full frame 46.5mm image circle coverage. All focal lengths are PL mount. Engineered as smart lenses, Optimo Primes will support both Cooke/I and Arri LDS; and feature common gear size and position across the entire 12-lens set.
Providing cinematographers with the freedom to create unique custom looks, each lens in the Optimo Prime series features Angenieux’s new Integrated Optical Palette (IOP) technology. The IOP lens customization system includes interchangeable internal glass optical elements, variable blade iris cartridges, and rear filter design. To learn more, click here.
New Optimo Primes Pro Caps are now available. Get the ultimate protection for your lens investment. Click here for more information.
"I recently shot Angenieux Optimo Primes with IOP on Daisy Jones and the Six for Amazon. For this particular job I tested full frame lenses from 7 different manufacturers. We we're trying to achieve a specific look that was pristine, beautiful, and that would envelope the characters. From these tests we fell in love with Optimo Primes. They are beautifully crafted like all Angenieux lenses. The focus fall off and bokeh are unique.
We decided to use a Tiffen 1/8 Glimmer Glass internal IOP. With this, it was like seeing the light through a glass of champagne. For some scenes we added netting in the back of the lens in lieu of rear filtration. This created a timeless glow in the highlights.
I will be using the lenses again on an upcoming NBC pilot shooting later this month."
- Checco Varese, ASC
The new full frame Angenieux Optimo Primes are now available to rent worldwide, with more sets delivering weekly, and available now in the Americas at:

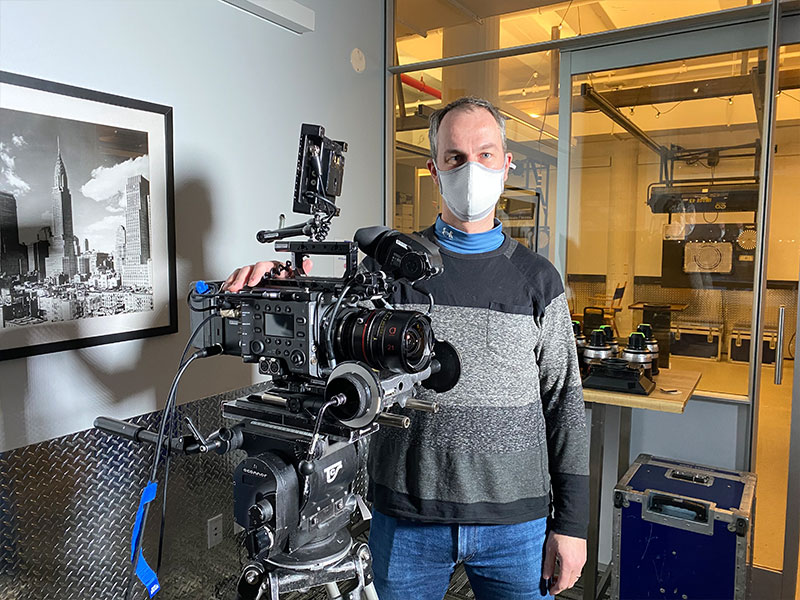

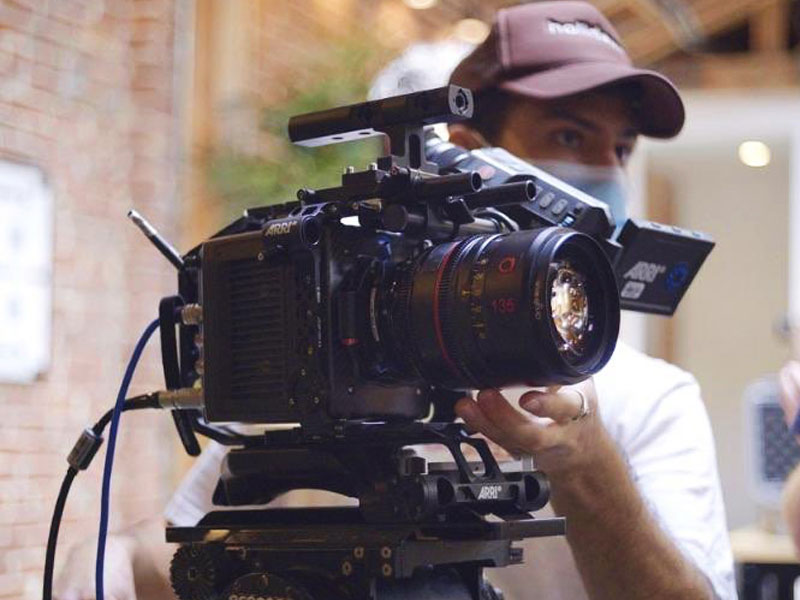

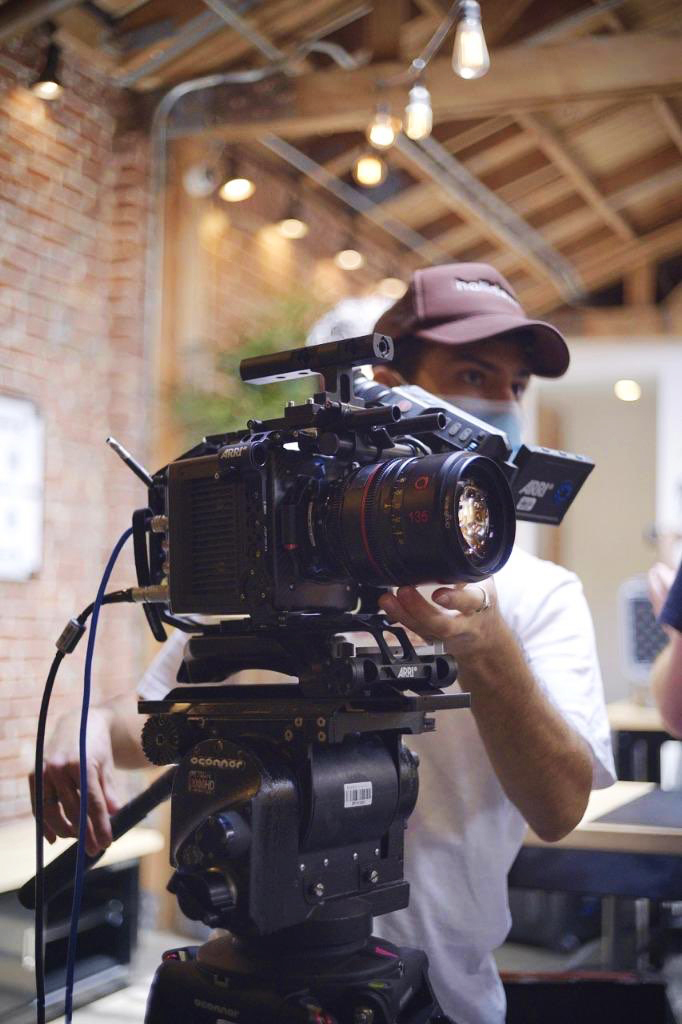

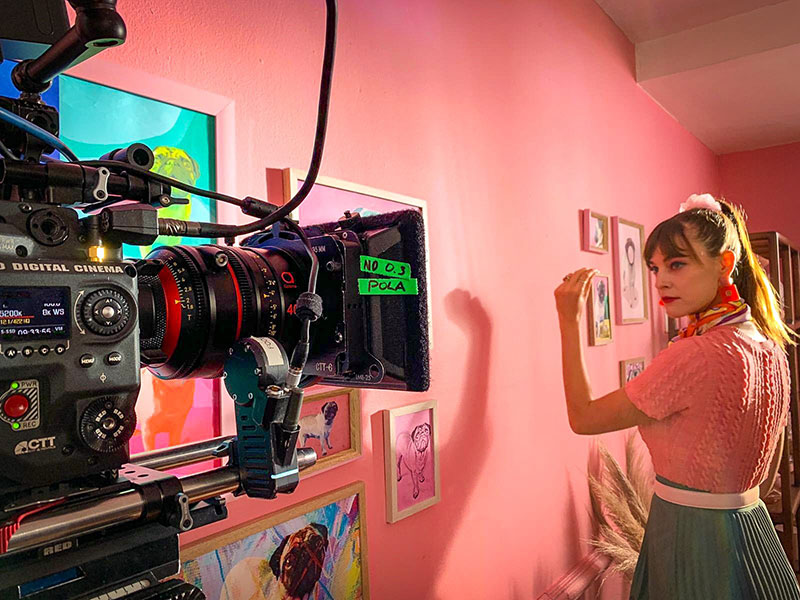

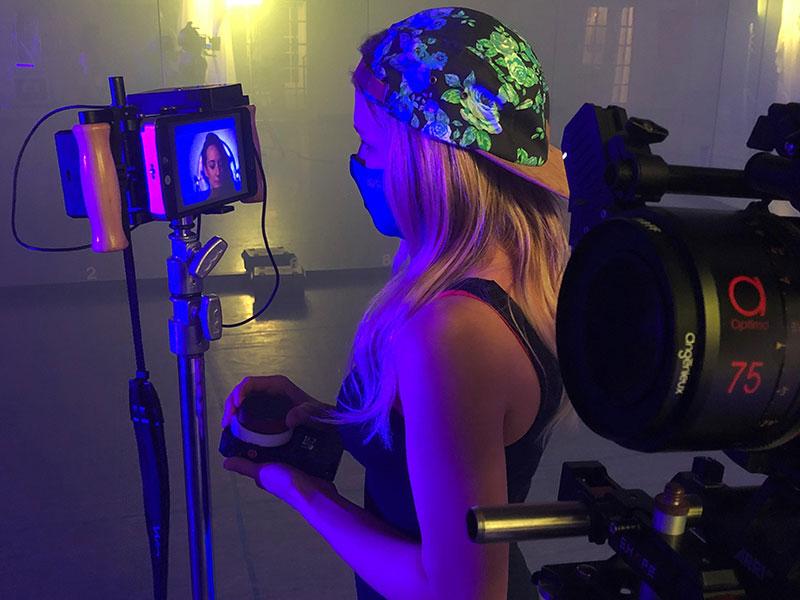

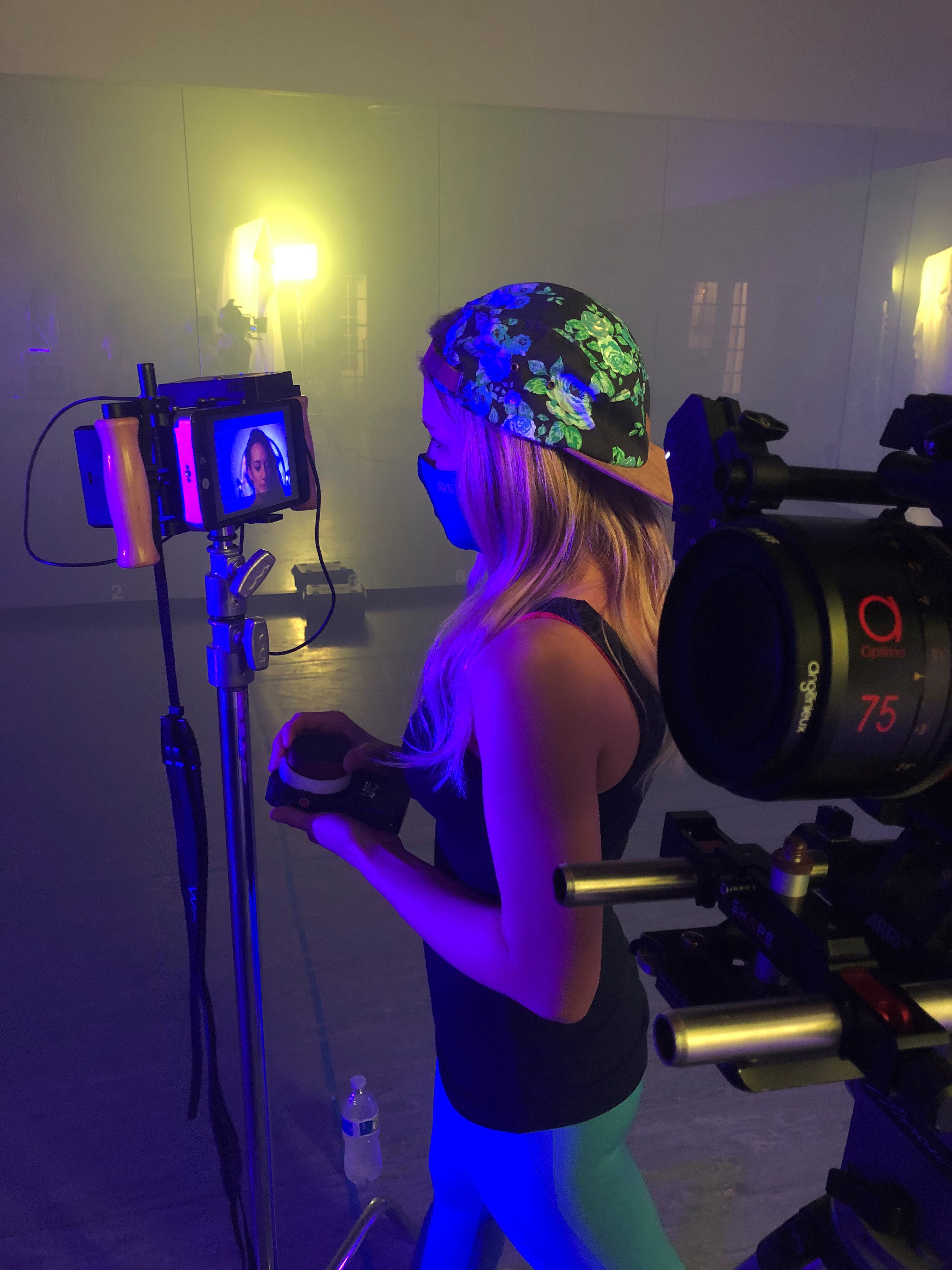

Optimo Primes in Action
Shot on Optimo Primes

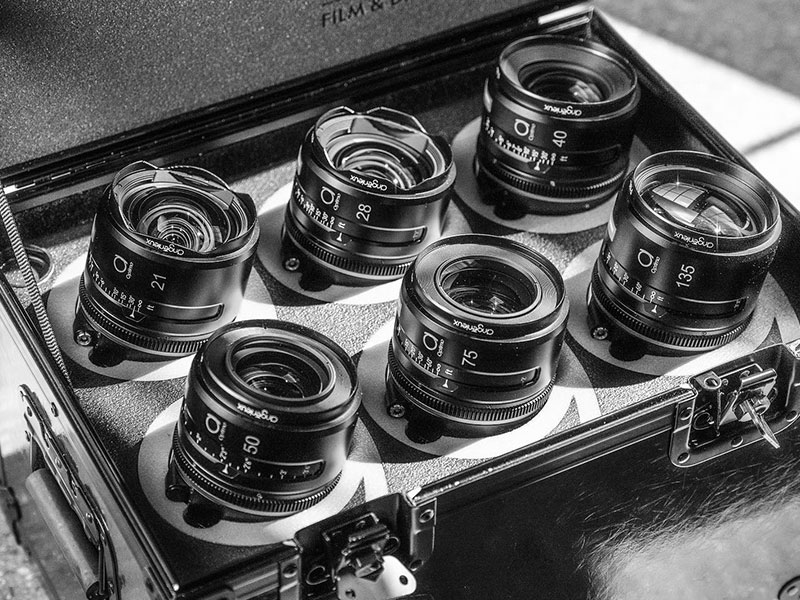

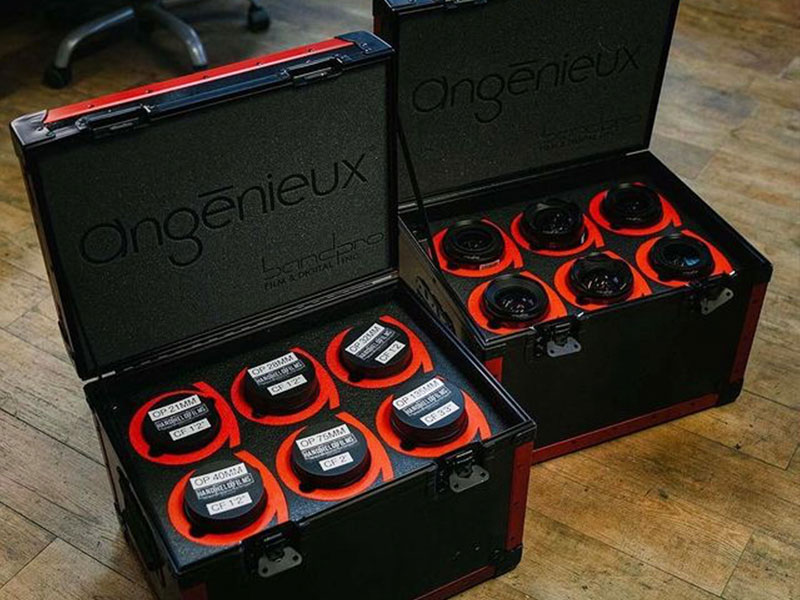

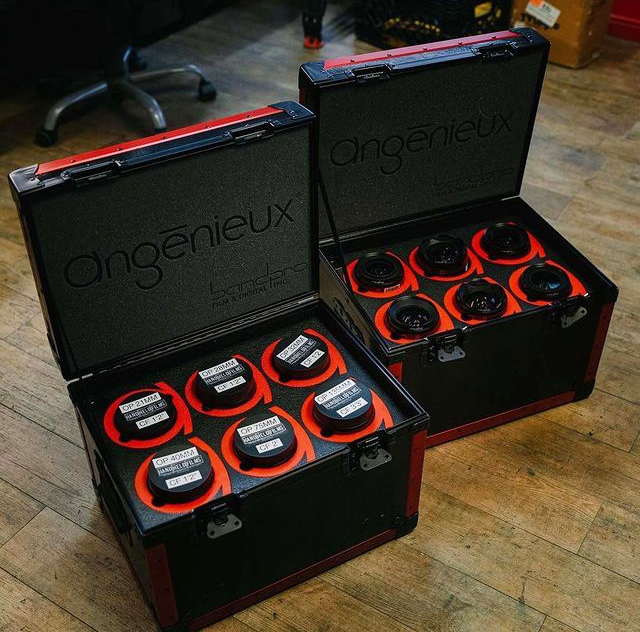

ARRIVING IN 3 SETS

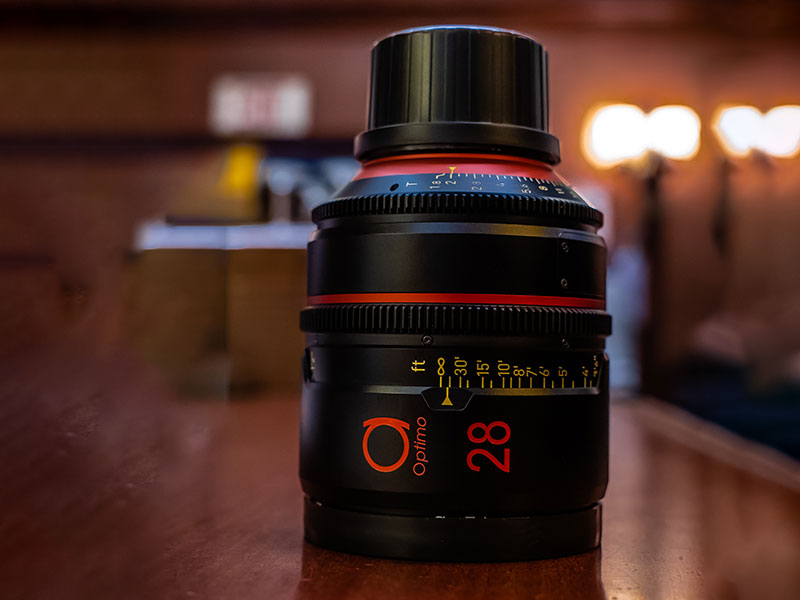

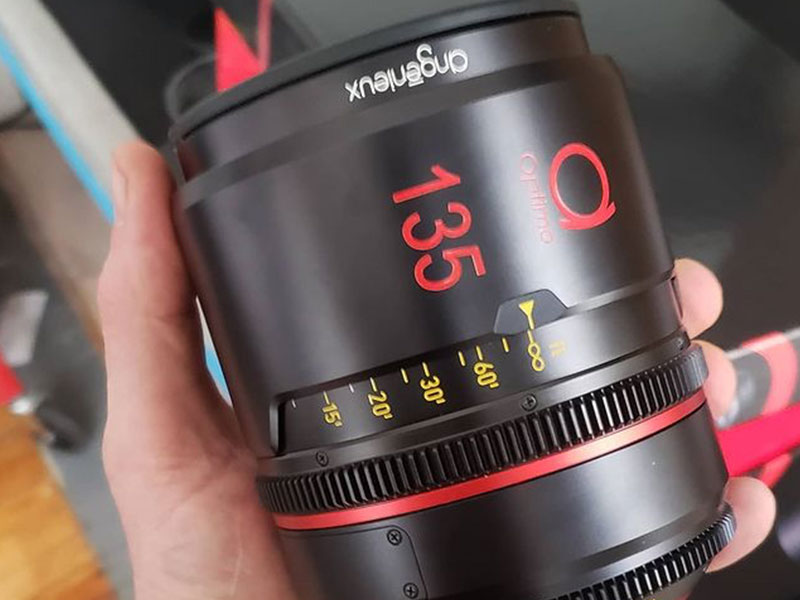

Optimo Prime
Platinum Set
12 Full Frame Lens Set
18, 21, 24, 28, 32, 40, 50, 60, 75, 100, 135 and 200 mm
Learn MoreSPECIFICATIONS
| FOCAL LENGTH (MM) | 18 | 21 | 24 | 28 | 32 | 40 | 50 | 60 | 75 | 100 | 135 | 200 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MAX T-STOP | 2 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 2.2 |
| MOD | 1’2” | 1’2” | 1’2” | 1’2” | 1’2” | 1’2” | 1’4” | 1’8” | 2” | 2’4” | 3’3′ | 4” |
| FRONT DIAMETER | 95mm | 95mm | 95mm | 95mm | 95mm | 95mm | 95mm | 95mm | 95mm | 95mm | 95mm | 114mm |
| IMAGE CIRCLE | 1.8/46.31 | 1.8/46.31 | 1.8/46.31 | 1.8/46.31 | 1.8/46.31 | 1.8/46.31 | 1.8/46.31 | 1.8/46.31 | 1.8/46.31 | 1.8/46.31 | 1.8/46.31 | 1.8/46.31 |
| REFERENCE (FEET/METERS) |
324783/324887 | 324778/324882 | 324786/324890 | 324776/324880 | 324781/324885 | 324775/324879 | 324780/324884 | 324784/324888 | 324779/324883 | 324782/324886 | 324777/324881 | 324785/324889 |
| LENGTH (MM) FROM PL MOUNT |
160 | 140 | 128 | 128 | 128 | 128 | 128 | 128 | 128 | 128 | 140 | 190 |
| HORIZONTAL FOV (*) | 97.0° | 87.8° | 72.5° | 81.3° | 65.3° | 54.3° | 44.3° | 37.3° | 30.1° | 22.9° | 17° | 11.5° |
| VERTICAL FOV (*) | 65.0° | 57.0° | 44.7° | 44.7° | 39.5° | 32.0° | 25.7° | 21.5° | 17.3° | 13.0° | 9.6° | 6.5° |
| Approx. WEIGHT KG/LBS (**) | 1.9/4.18 | 1.8/3.96 | 1.7/3.75 | 1.7/3.75 | 1.7/3.75 | 1.7/3.75 | 1.7/3.75 | 1.7/3.75 | 1.7/3.75 | 1.8/3.96 | 2.0/4.4 | 2.3/5.07 |
| FOCUS BARREL ROTATION MOD TO INFINITY |
320° | 320° | 320° | 320° | 320° | 320° | 320° | 320° | 320° | 320° | 320° | 320° |
| FOCUS BARREL ROTATION END STOP TO END STOP |
300° | 300° | 300° | 300° | 300° | 300° | 300° | 300° | 300° | 300° | 300° | 300° |
| IRIS BARREL ROTATION | 75° | 75° | 75° | 75° | 75° | 75° | 75° | 75° | 75° | 75° | 75° | 75° |
*40.5mmx22.4mm sensor size
**Weight in Approximation
